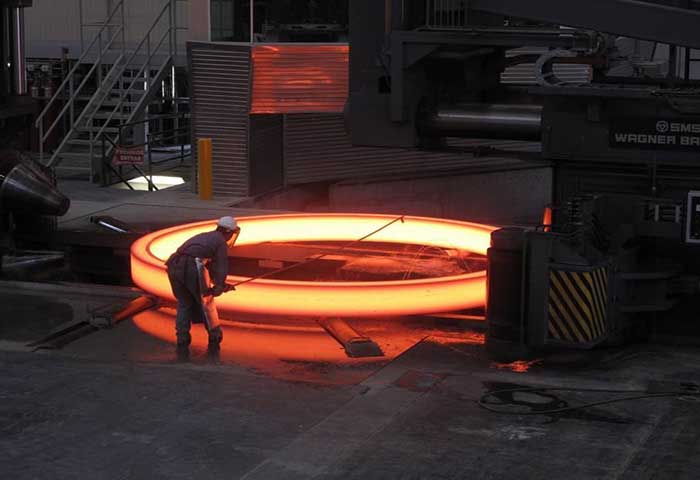

Preliminary material segments are cut off in required length by hacksaw - and band saws. In preparation for forging, the preliminary segments must be heated up to an temperature of 1200°C. Forging is the process by which metal is heated and is shaped by plastic deformation by suitably applying compressive force. Usually the compressive force is in the form of hammer blows using a power hammer or a press. Accordingly the raw material changed to Circles, Block, Flat, Ring etc. as per the requirement of the customer.

Quality Forging From Raw material to Finished Product:

--> Physical inspection of raw material
--> Chemical check up of raw material
--> Ultrasonic diagnosis of raw material
--> Normalising of sophisticated raw material
--> Furnace temperature vigilance during preheating & forging
--> Transferring the forge product in MICA PIT
--> Ultrasonic scanning of the normalized product
--> Normalising of forged product
--> Hardness testing of normalized product
--> Tensile test of normalized product
--> Micro struture testing as per customer's requirement
--> Stamping of our trade mark on the product
--> Sawing of product as per customer's requirement
--> Colouring and painting

Quality Control Facilities:

--> Ultrasonic testing facility
--> Chemical testing facility
--> Tensile testing facility
--> Hardness testing facility

Why Use Forging:

Directional Strength

The forging process produces directional alignment (grain flow) for important directional properties of strength, ductility and resistance to impact and fatigue.

Impact Strength:

Through proper grain flow orientation; the forging Process can develop the maximum impact strength and fatigue resistance. Possible in a metal.

Structural Integrity:

As is well known, a forging’s structural reliability is Exceptional compared to other metalworking processes. There are no Internal gas pockets or voids that may cause unexpected failure underconditions of high stress or impact.

Conclusion:

Forging is not the least expensive method but it is the best. When looking for hubs, axles, spindles and similar, don't be fooled by low Pricing that may indicate an inferior method of manufacturing.
