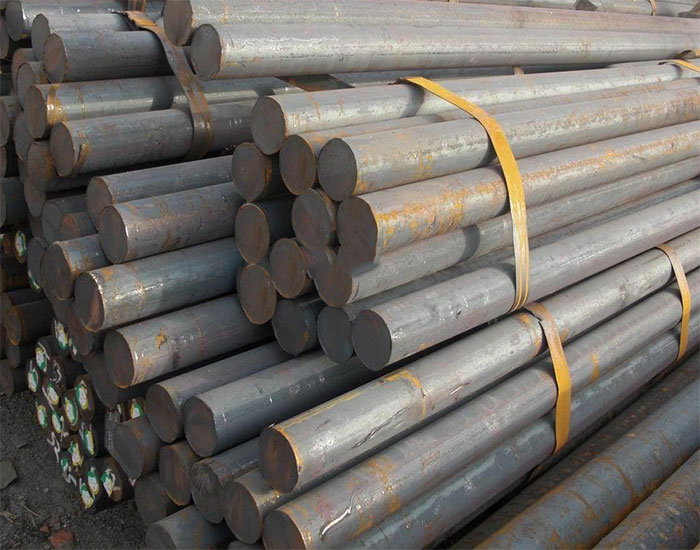

MILD STEEL ROUND BARS



We specialize in a range of alloy steel round bars which are of very high quality. Our range of round bars consists of steel round bars, cold drawn round bars etc. Pilling and automatic tying of the structure of our round bars ensures minimum damage during handling and transport. We also roll our bars in the Light and medium merchant mill and other sections in medium merchant and structural mill. When it comes to the manufacturers of round bars in the market, we are the name reckoned to be the best.

Special Features

  • 1. Low temperature rolling imparts higher strength to the structures.
  • 2. Pilling and automatic tying of the structurally ensure minimum damage during handling and transport.
  • 3. Tension free rolling in the Light and Medium Merchant Mill and other sections will be rolled in Medium Merchant and Structural Mill.



Size in mm Average Weight
KG/MTR KG/FT
12 0.90 0.30
14 1.20 0.40
16 1.60 0.50
18 2.00 0.60
20 2.50 0.80
22 3.00 .90
25 3.90 1.20
28 4.80 1.50
30 5.55 1.69
32 6.30 1.90
36 8.00 2.44
40 9.90 3.00
45 12.49 3.81
50 15.40 4.70
56 19.34 5.89
60 22.20 6.80
63 24.47 7.46
63.5 24.86 7.58
65 26.05 7.94
70 30.20 9.20
73 32.86 10.00
78 37.51 11.43
80 39.50 12.00
83 42.47 12.95
85 44.55 13.58
90 50.00 15.20
92 52.19 15.91
95 55.65 16.95
100 61.66 18.79
105 67.98 20.72
110 74.60 22.74
125 96.34 29.36



Rolling Tolerances
Size
Ovality
Weight
Length
up to 25 mm ± 0.5 mm 25 mm to 35 mm ± 0.6 mm 35 mm to 50 mm ± 0.8 mm 50 mm to 80 mm ± 1 mm 80 mm to 100 mm ± 1.3 mm 100 mm and above ± 1.6 % of diameter.
± 75 % of total tolerance specified on the size.
10 mm to 16 mm ± 5 %
16 mm and above ± 3 %
For fixed length : ± 100 m
